Nordic Clays TrapMaster – Electronic clay pigeon launcher for mobile shotgun training

The Nordic Clays TrapMaster is the compact and modern solution for demanding clay pigeon and clay pigeon shooting – anytime, anywhere. Weighing just 2 kg, with an integrated high-performance battery and intuitive operation, the TrapMaster is ideal for mobile use – whether in the field, in the forest, or on the practice range.

What is included in the delivery?

• Nordic Clays TrapMaster clay disc thrower

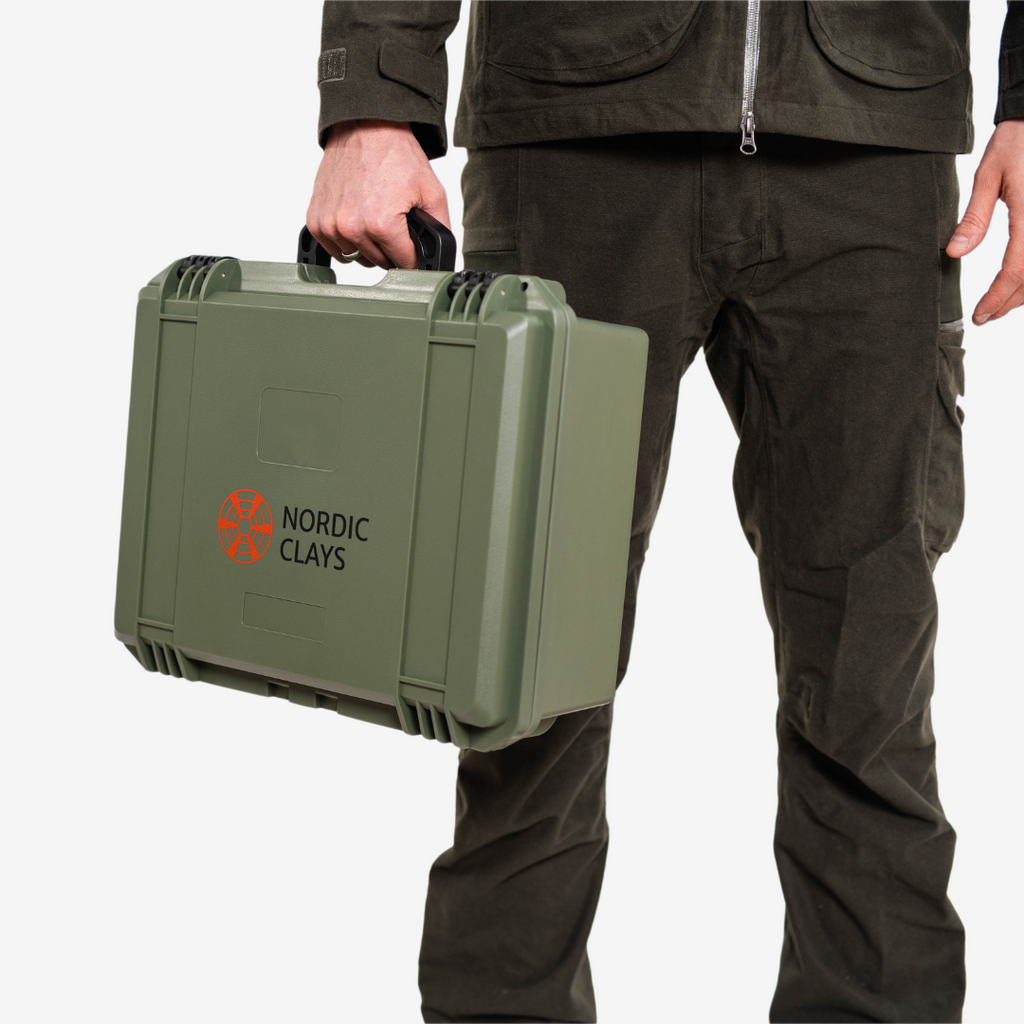

• Robust transport case

• shoulder strap

• Universal charger

• Car charger (cigarette lighter)

Technical data

• Color: Moss Green

• Weight: 2 kg

• Dimensions: 22 x 13 x 29.6 cm

• Battery capacity: 5,200 mAh

• Charging voltage: 15 V DC

• Operating voltage: 11.1 V

• Charging time: approx. 3 hours to 70%, 5 hours to 100%

• Range of the clay pigeons: Up to 100 meters

• Throwing speed: Up to 60 km/h

• Throwing frequency: single and double throw possible

• Throwing angle: Freely adjustable in any direction

Performance & Operation

• Up to 300 releases per full battery charge – so up to 600 clay pigeons when used in double throw mode

• 9 different speed levels

• Easy triggering via button control (load + fire)

• Hand guidance controls the trajectory: for realistic, dynamic training

Battery & care instructions

• Charging indicator via LED :

  • Green: 66–100%

  • Yellow: 33–66%

  • Red: 0–33%

• Charging recommendation :

  • Always fully charge before use

  • Recharge every 3 months to maintain battery life

  • Do not charge below 5°C – only indoors at room temperature (15–25°C)

  • Do not leave on the charger permanently – disconnect after charging is complete

Cold weather tip

The battery drains faster in cold temperatures. Start training at a reduced speed so the TrapMaster can warm up.

Assembly instructions

The TrapMaster can be operated with a standard camera tripod (1/4 inch screw) . Important: The tripod should have a load capacity of at least 3 kg .

Malfunctions & Restart

If the TrapMaster does not work properly:

1. Turn off, wait 10-15 seconds, turn on again

2. Without clay pigeon: press the blue “Load” button

3. Aim in a safe direction (e.g. at the ground)

4. Press the red “Fire” button

5. Repeat the process 2-3 times if necessary

The TrapMaster from Nordic Clays is a revolutionary electronic clay pigeon/clay disc launcher that combines flexibility, performance, and ease of use. Whether for ambitious shooters or those who enjoy sports on the go, the TrapMaster lets you train realistically, environmentally friendly (compatible with biodegradable clay pigeons), and completely location-independently.
